• Air conditioning, single-zone manual
• Assist handle, front passenger
• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers
• Defogger, side windows
• Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)
• Headliner, cloth, over driver and passenger
• Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches
• Oil life monitor
• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim
• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Theft-deterrent system, vehicle, PASS-Key III
• Tow/haul mode selector, instrument panel-mounted
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, full-length box ladder-type
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar (Requires *G***05 models.)
• Suspension, rear hypoid drive axle with multi-leaf springs

• Daytime Running Lamps
• Door beams, steel-side
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitoring System (does not apply to spare tire)

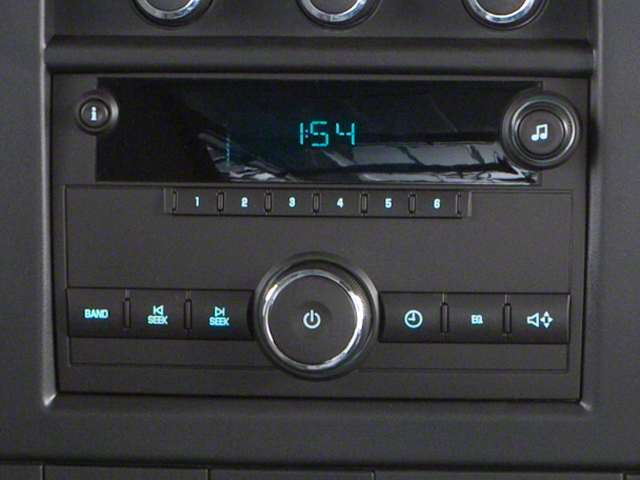

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan
• digital clock and 2 front door speakers

LIGHTING, AUXILIARY

• with reading and underhood lights Includes (U80) 8-point digital compass.

BRAKE WARNING INDICATOR

• monitors brake system pressure
• with loss of pressure an audible alarm (chime) and cluster telltale is lit.

TIRE, SPARE LT245/75R16E ALL-SEASON, BLACKWALL

• located at rear underbody of vehicle (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive tow/haul mode and internal transmission oil cooler (STD)

WINDOWS, POWER

• (Included and only available with (ZQ2) Convenience Package.)

STEERING COLUMN, TILT

• Tilt-steering column without cruise control.

KEY EQUIPMENT, TWO ADDITIONAL KEYS FOR SINGLE KEY SYSTEM

• Provides two additional spare keys for a total of (4). (Keys will be cut but not programmed).

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM

• head restraints and inboard armrests

BODY, STANDARD

• (STD)

PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

REMOTE KEYLESS ENTRY

• with 2 transmitters and remote panic button

DOOR, SWING-OUT PASSENGER-SIDE, 60/40 SPLIT

• (STD)

TRIM PANELS, HINGED REAR SIDE DOORS AND HINGED REAR DOORS

• (STD)

LABEL, FASTEN SAFETY BELTS

• "Fasten Safety Belts" reminder label on driver and front passenger door window glass.

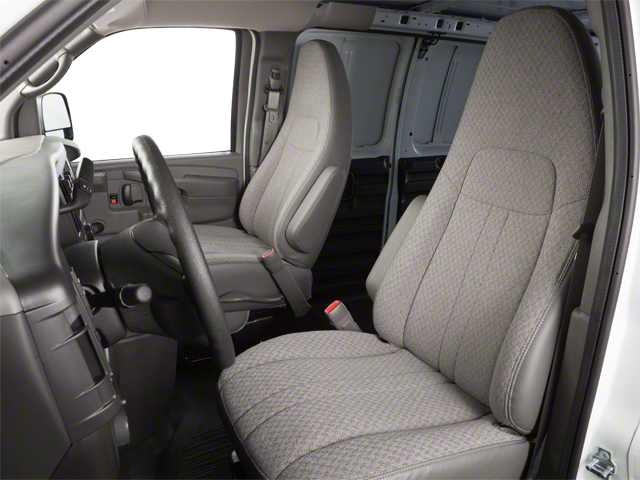

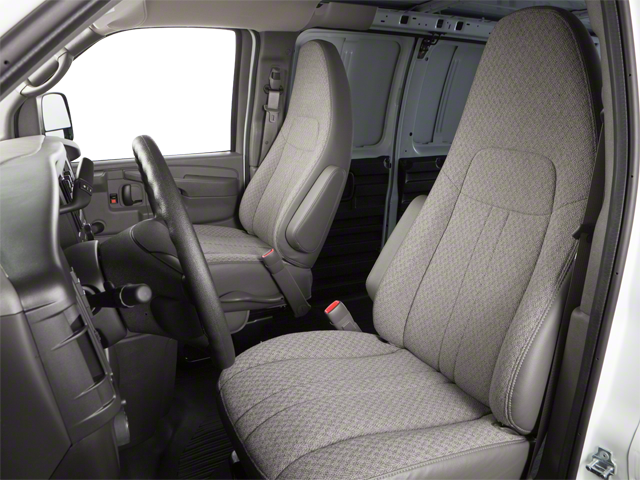

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS

• with head restraints and vinyl or cloth trim (STD)

TIRE VALVE STEM CAPS, AIR THRU

• Air through valve caps on the tire air valves.

BATTERY, HEAVY-DUTY 770 COLD-CRANKING AMPS, MAINTENANCE-FREE

• with rundown protection and retained accessory power

GLASS, SOLAR-RAY DEEP-TINTED

• (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)

POWER PACKAGE

• (Includes (ZQ2) Convenience Package and (DE5) outside heated
• power-adjustable
• Black mirrors. (Upgradeable to (DE7) outside heated
• power-adjustable
• Black mirrors with turn signal indicators).

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

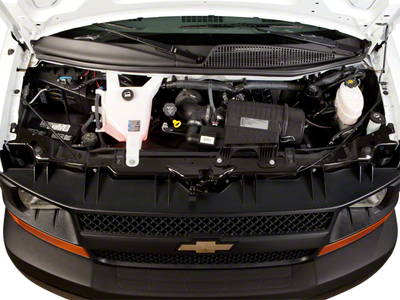

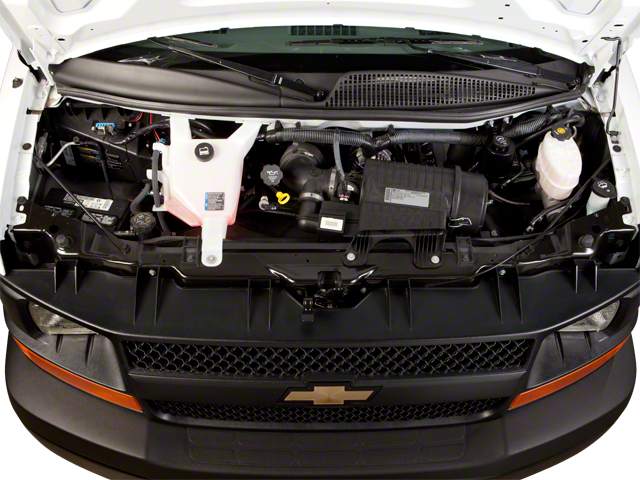

ENGINE, VORTEC 4.8L V8 SFI FLEXFUEL

• (280 hp [208.8 kW] @ 5200 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD)

AIR BAG, FRONTAL, DRIVER-SIDE ONLY

• (deletes passenger-side)

• WHEEL TRIM CHROME CENTER CAP
• REAR AXLE 3.42 RATIO
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan digital clock and 2 front door speakers
• LIGHTING AUXILIARY with reading and underhood lights Includes (U80) 8-point digital compass.
• GLASS SWING-OUT REAR CARGO DOOR WINDOWS
• BRAKE WARNING INDICATOR monitors brake system pressure with loss of pressure an audible alarm (chime) and cluster telltale is lit.
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL located at rear underbody of vehicle (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive tow/haul mode and internal transmission oil cooler (STD)
• GLASS SWING-OUT REAR SIDE DOOR AND REAR DOOR WINDOW
• WINDOWS POWER (Included and only available with (ZQ2) Convenience Package.)
• STEERING COLUMN TILT Tilt-steering column without cruise control.
• KEY EQUIPMENT TWO ADDITIONAL KEYS FOR SINGLE KEY SYSTEM Provides two additional spare keys for a total of (4). (Keys will be cut but not programmed).
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM head restraints and inboard armrests
• BODY STANDARD (STD)
• PREFERRED EQUIPMENT GROUP includes Standard Equipment
• ALTERNATOR 145 AMPS
• REMOTE KEYLESS ENTRY with 2 transmitters and remote panic button
• SHIP THRU PRODUCED IN WENTZVILLE AND SHIPPED TO LEGGETT AND PLATT/MASTERACK.
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE BLACK MANUAL-FOLDING
• TRIM PANELS HINGED REAR SIDE DOORS AND HINGED REAR DOORS (STD)
• LABEL FASTEN SAFETY BELTS "Fasten Safety Belts" reminder label on driver and front passenger door window glass.
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS with head restraints and vinyl or cloth trim (STD)
• DOOR LOCKS POWER WITH LOCK-OUT PROTECTION
• PAINT SOLID
• CONVENIENCE PACKAGE POWER WINDOWS AND DOOR LOCKS
• TIRE VALVE STEM CAPS AIR THRU Air through valve caps on the tire air valves.
• BATTERY HEAVY-DUTY 770 COLD-CRANKING AMPS MAINTENANCE-FREE with rundown protection and retained accessory power
• GLASS SOLAR-RAY DEEP-TINTED (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• GLASS FIXED REAR DOORS AND SIDE CARGO DOORS
• POWER PACKAGE (Includes (ZQ2) Convenience Package and (DE5) outside heated power-adjustable Black mirrors. (Upgradeable to (DE7) outside heated power-adjustable Black mirrors with turn signal indicators).
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• COMPASS 8-POINT DIGITAL LOCATED IN THE DRIVER INFORMATION CENTER
• SUMMIT WHITE
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• ENGINE VORTEC 4.8L V8 SFI FLEXFUEL (280 hp [208.8 kW] @ 5200 rpm 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD)
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM

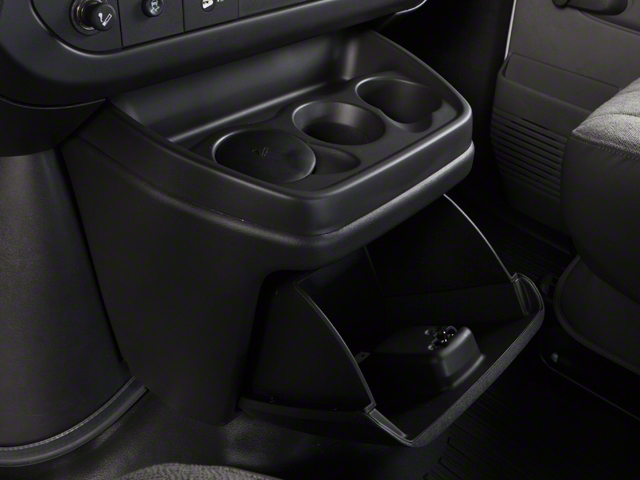

• CONSOLE ENGINE COVER WITH SWING-OUT STORAGE BIN
• AIR BAG FRONTAL DRIVER-SIDE ONLY (deletes passenger-side)
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Intermittent Wipers
• Bucket Seats
• Bucket Seats
• A/C
• Tire Pressure Monitor
• Trip Computer
• Immobilizer
• Power Outlet
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Cargo Area Dimensions
• Cargo Area Length : Floor to Console (in)
• Cargo Area Length : Floor to Seat 1 (in)
• Cargo Area Width : Beltline (in)
• Cargo Box (Area) Height (in): 52.9
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 270.4
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Doors
• Side Door Type: Swing-out
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 145
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Ground Clearance, Front (in): 11.0
• Ground Clearance, Rear (in): 7.1
• Ground to Top of Load Floor (in): 27.8
• Height, Overall (in): 81.5
• Length, Overall w/rear bumper (in): 224.1
• Overhang, Front (in): 39.7
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.3
• Step Up Height - Side (in): 20.8
• Wheelbase (in): 135.0
• Width, Max w/o mirrors (in): 79.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Front Head Room (in): 39.8
• Front Hip Room (in): 65.5
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Passenger Capacity: 2
• Mileage
• EPA Fuel Economy Est - City (MPG): 10
• EPA Fuel Economy Est - Hwy (MPG): 16
• Fuel Economy Est-Combined (MPG): 12
• Steering
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr-Assisted
• Turning Diameter - Curb to Curb (ft): 49.2
• Summary
• Body Code: ZW9
• Body Style: 2500 Cargo Van 135" WB

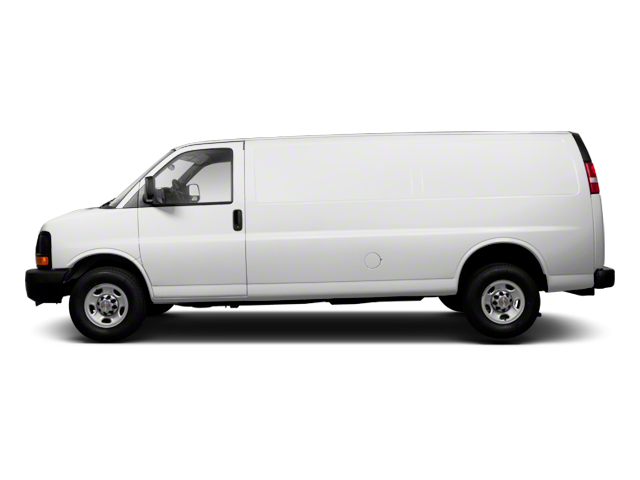

• Vehicle Name: Chevrolet Express Cargo Van
• Suspension
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Independent
• Suspension Type - Rear: Hypoid Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: XHH
• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: YHH
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZHH
• Spare Tire Size: LT245/75R16E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Maximum Trailering Capacity (lbs): 10000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1110
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Vehicle
• Rear Door Type: Dual Swing-out
• Weight Information
• Curb Weight - Front (lbs): 3036
• Curb Weight - Rear (lbs): 2290
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Gross Combined Wt Rating (lbs): 13000
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 16 x 6.5
